25 november, 2012 at 12:34 AM

I had some trouble sending a notification email from backup exec, and was looking for a debug tool to look behind the screens what was going on.

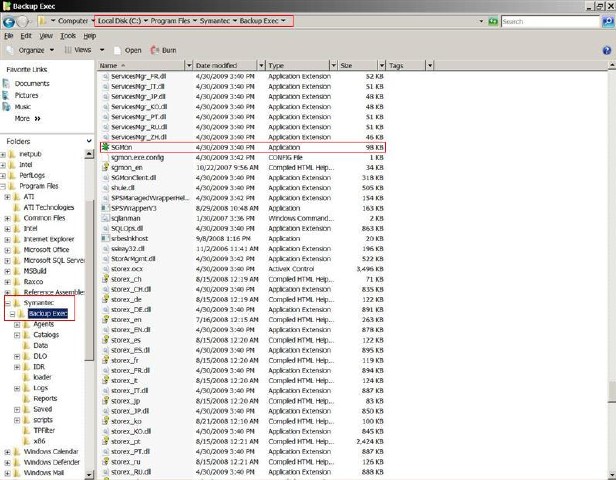

1. Go to the Backup Exec install directory and double-click on SgMon.exe

2. Select  - Job Engine, RAWS, Agent Browser - Backup Exec Server - Administration Console and keep SGmon minimized.

3. Go to Tools - Recipients - Select a User - Properties - Test (to send a test notification)

4. Check if you received the notification?

5. In my case i couldn't relay

BESERVER: [07/30/12 21:08:17] [11044]     -1 SetServiceStatus: state: SERVICE_RUNNING check point: 0 wait hint: 0 BESERVER: [07/30/12 21:08:26] [22100]     17 In Function CNotificationBO::TestMailSettings BESERVER: [07/30/12 21:08:26] [22100]     17 In Function CNotificationBO::SendManagedNotification BESERVER: [07/30/12 21:08:26] [22100]     17 In Function CNotificationBO::GetSmtpSettings using LOGENTRY BESERVER: [07/30/12 21:08:26] [22100]     17 In Function CNotificationBO::SendManagedNotification before CoCreateInstance BESERVER: [07/30/12 21:08:26] [22100]     17 In Function CNotificationBO::SendManagedNotification after CoCreateInstance BESERVER: [07/30/12 21:08:26] [22100]     17 In Function CNotificationBO::SendManagedNotification adding 'to' info@yyyyy.nl BESERVER: [07/30/12 21:08:26] [0000]     In Function MN: SendNotificationenableAuth is true name= administrator BESERVER: [07/30/12 21:08:26] [0000]     In Function MN: SendNotification added from  administrator@xxxxx.nl to info@yyyyy.nl subject Backup Exec Notification Test messsage This is a test of the notification feature provided by Backup Exec BESERVER: [07/30/12 21:08:26] [0000]     In Function MN: SendNotification Before notify.Send(msg); BESERVER: [07/30/12 21:08:36] [0000]     In Function MN: SendNotification SmtpException System.Net.Mail.SmtpFailedRecipientException: Mailbox unavailable. The server response was: 5.7.1 Unable to relay at System.Net.Mail.SmtpTransport.SendMail(MailAddress sender, MailAddressCollection recipients, String deliveryNotify, SmtpFailedRecipientException& exception)at System.Net.Mail.SmtpClient.Send(MailMessage message at BackupExec.ManagedNotif.ManagedNotif.SendNotification() trying to send with SSL true BESERVER: [07/30/12 21:08:36] [0000]     In Function MN: SendNotificationenableAuth is true name= administrator BESERVER: [07/30/12 21:08:36] [0000]     In Function MN: SendNotification added from  administrator@xxxxx.nl to info@yyyyy.nl subject Backup Exec Notification Test messsage This is a test of the notification feature provided by Backup Exec BESERVER: [07/30/12 21:08:36] [0000]     In Function MN: SendNotification Before notify.Send(msg); BESERVER: [07/30/12 21:08:48] [17676]     -1 SecurityBO: Successfully setup RAWS certs. BESERVER: [07/30/12 21:08:58] [11044]     -1 SetServiceStatus: state: SERVICE_RUNNING check point: 0 wait hint: 0



For more information about SGmon check out: http://www.symantec.com/business/support/index?page=content&id=TECH4986



To solve Relaying check out http://exchangeserverpro.com/how-to-configure-a-relay-connector-for-exchange-server-2010/
